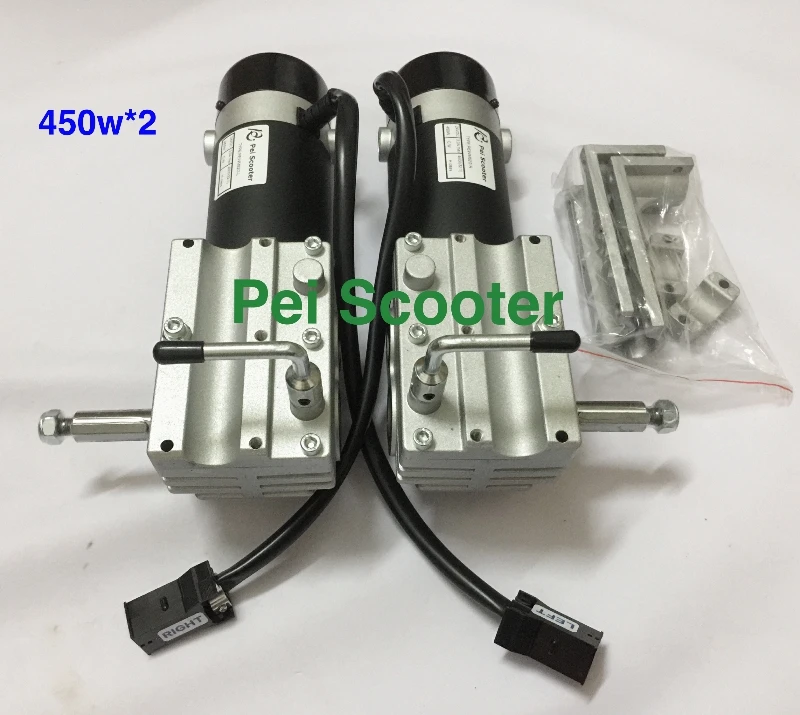

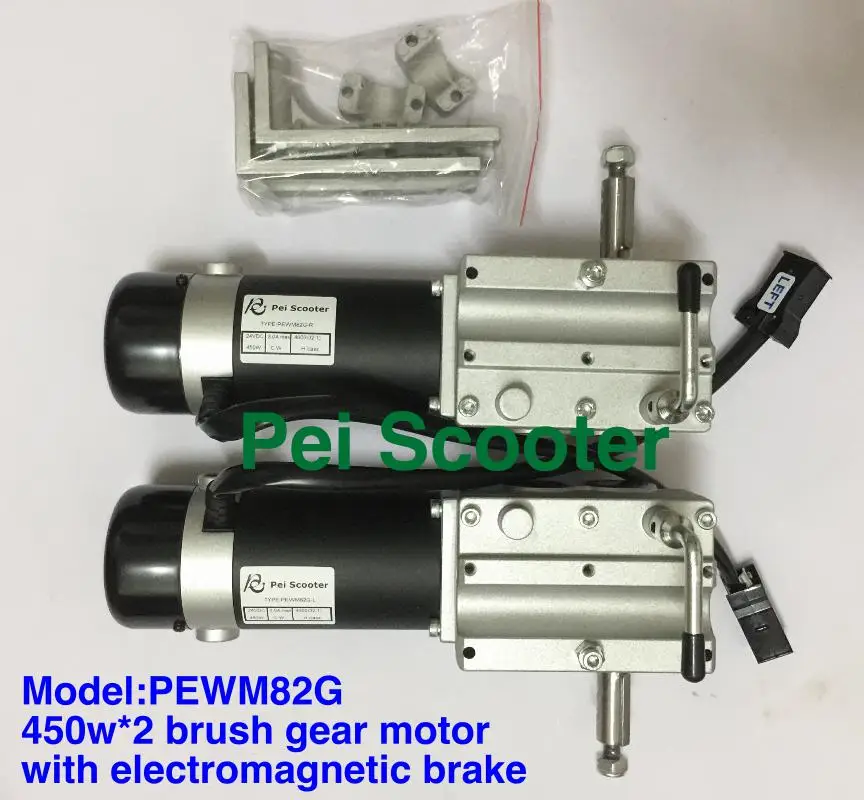

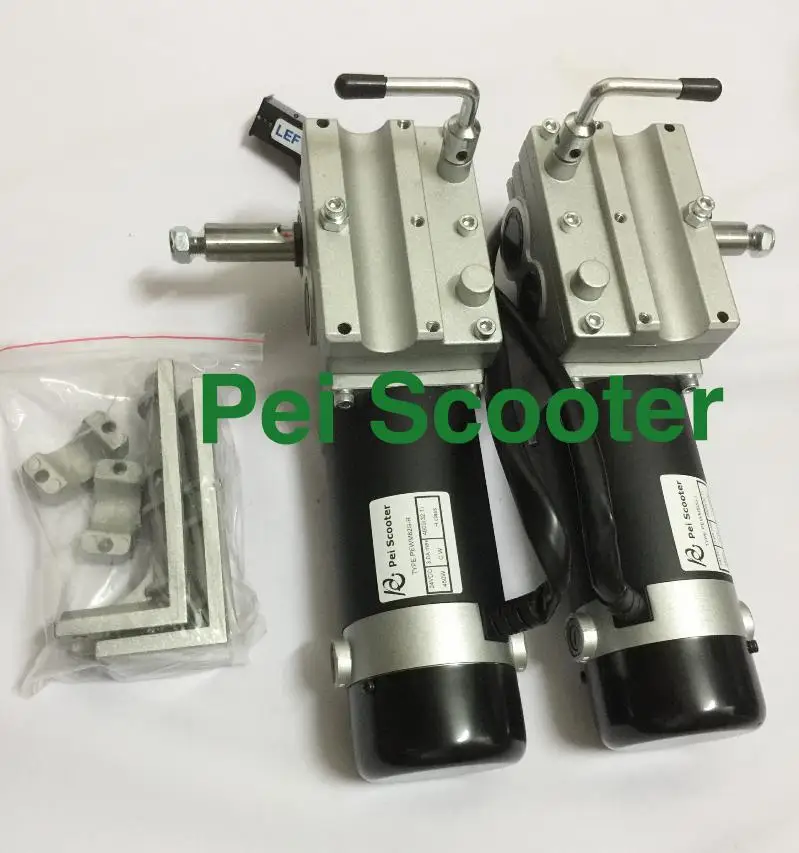

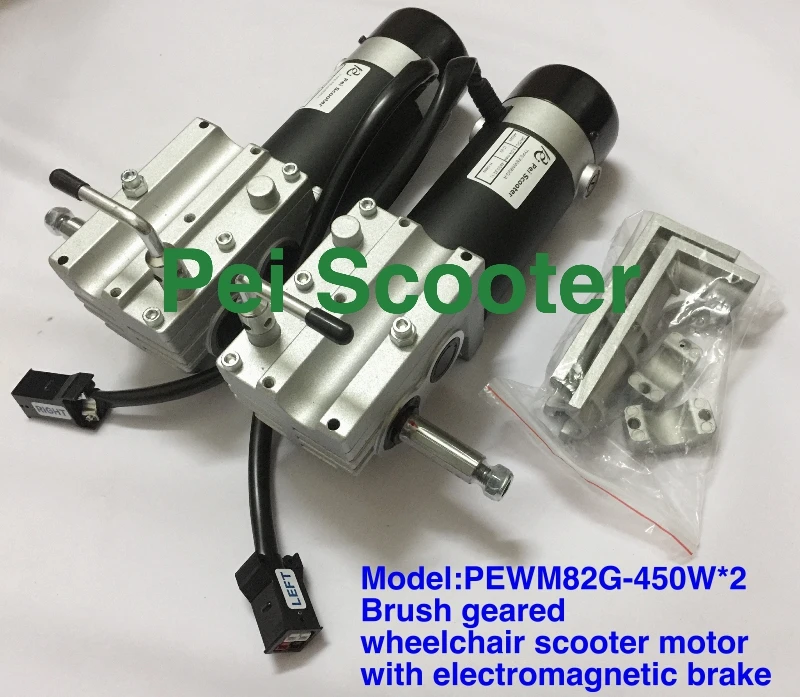

Brushed geared wheelchair scooter dc motor 450w*2 with electromagnetic brake

Model:PEWM82G

Brake:DC 24v 0.5A 20KGF-CM

Noise:62dBA(MAX)

Ratio:32:1

Voltage:DC 24v

Output:450w for one side

900w for two sides

speed:4700+-100rpm

Price including two sides

Even if use more ten years,Our wheelchair motors still don't leak,and no noise,someone else's wheelchair motor can never exceed.

The electric wheelchair scooter motor is a brushed gear motor with electromagnetic brake.

Working voltage is DC 24v,

They are the most widely used in electric wheelchair scooter motor on the market,

because with a gearbox,so the wheelchair motor's torque is bigger,climbing performance is good,

strong stability when low speed startup,can wide speed range.

More than 10years in the industry,best quality.

 If you want to be our agent,please contact us!

 If you need other parts,please contact us!

Above the list products ,the wheelchair motor would all be used electric wheelchair.

The wheelchair motors are brushed electromagnetic brake motor.

With configuration the gearbox,the wheelchair motor will make the torque stronger to climb.

When using  wheelchair controller (joystick),driving the electric wheelchair  will be more relaxed and convinet.

Also,you can employ wheelchair motor to DIY many  automation products.
